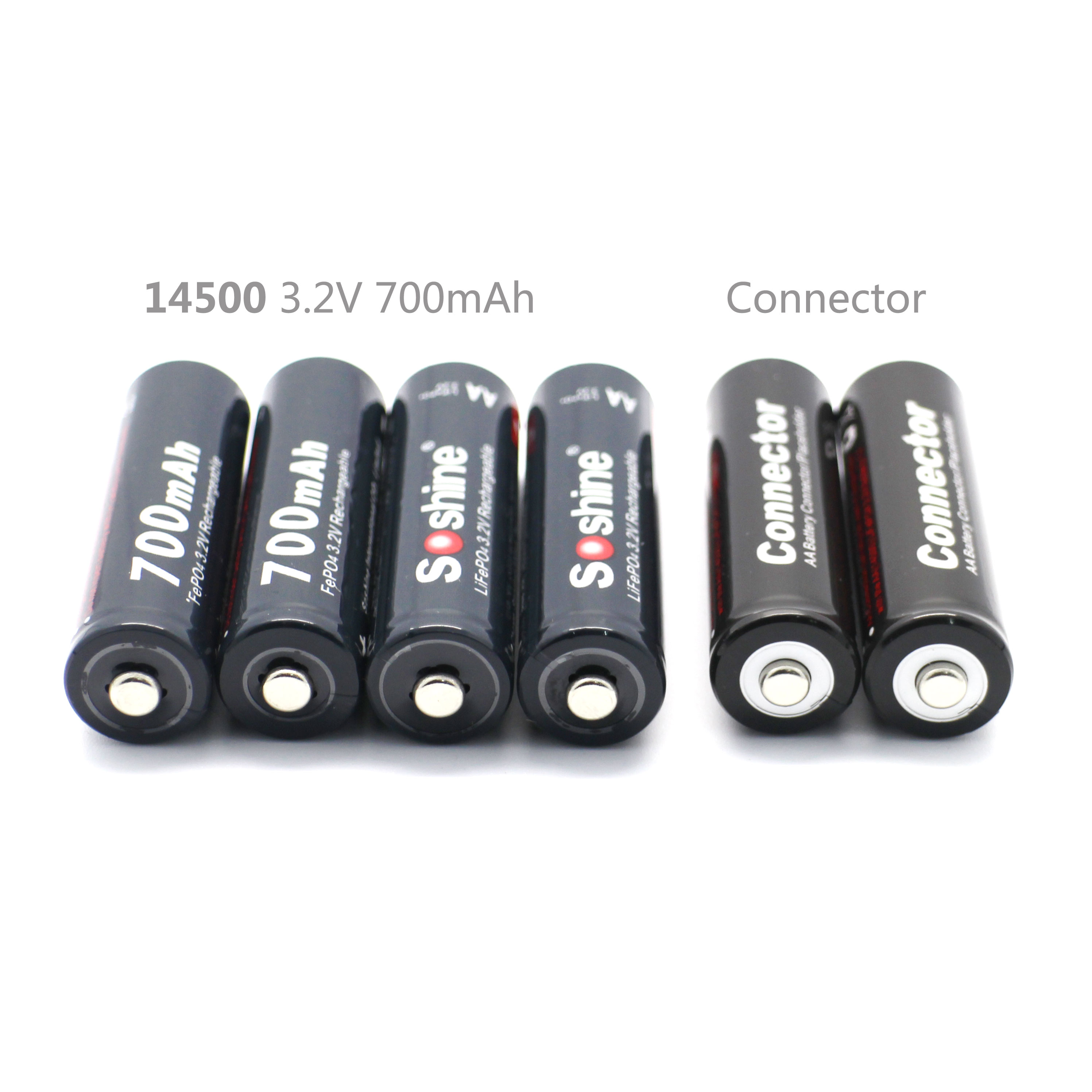

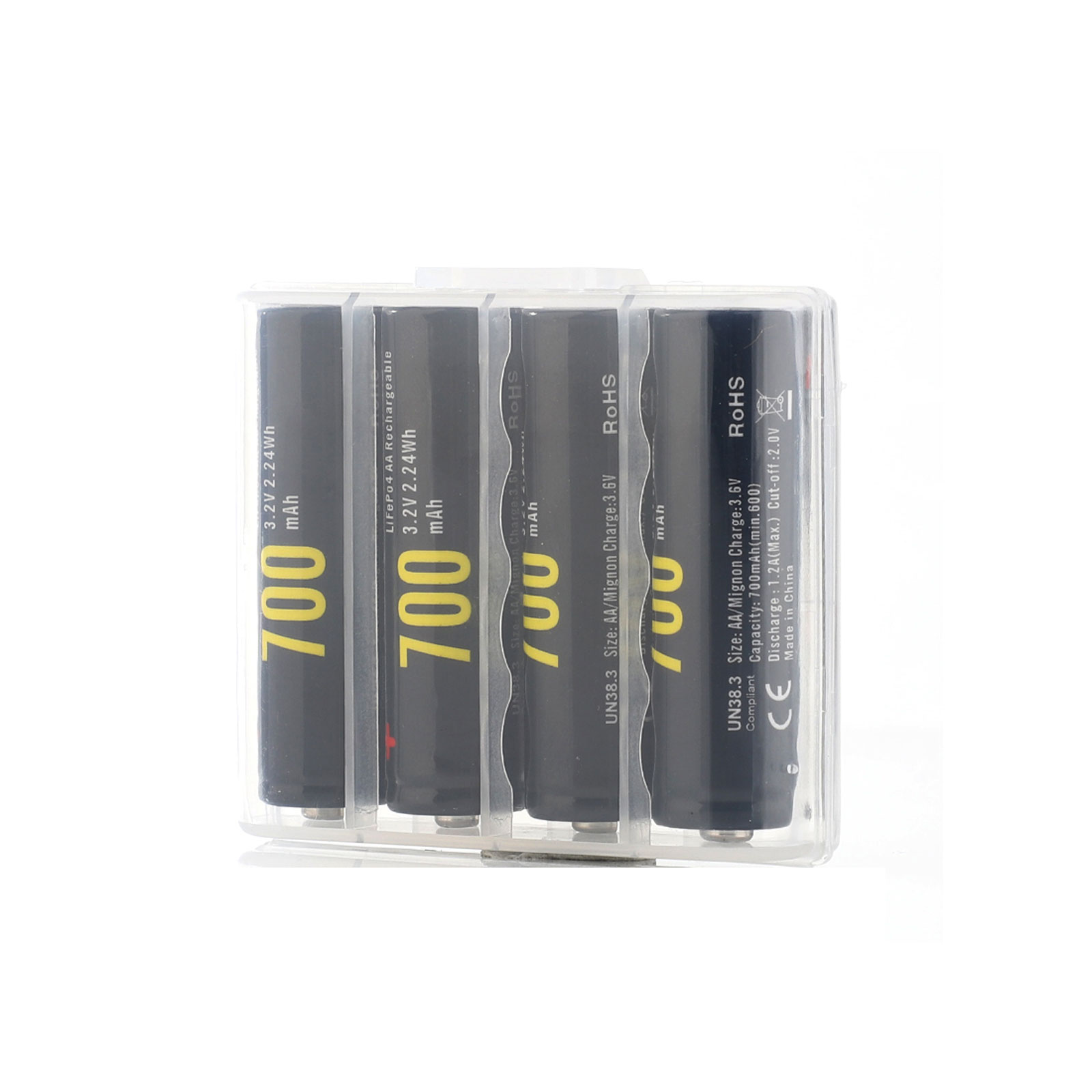

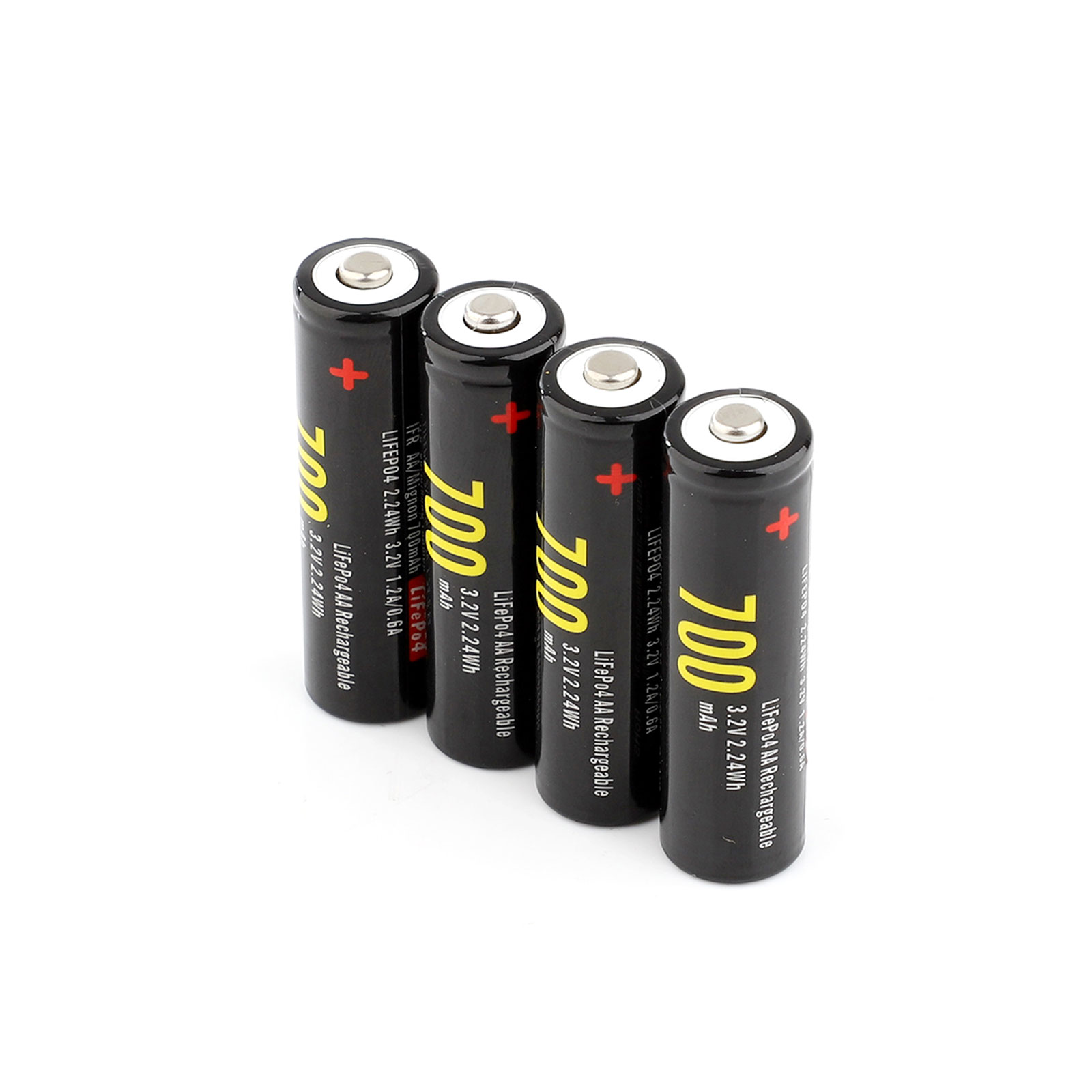

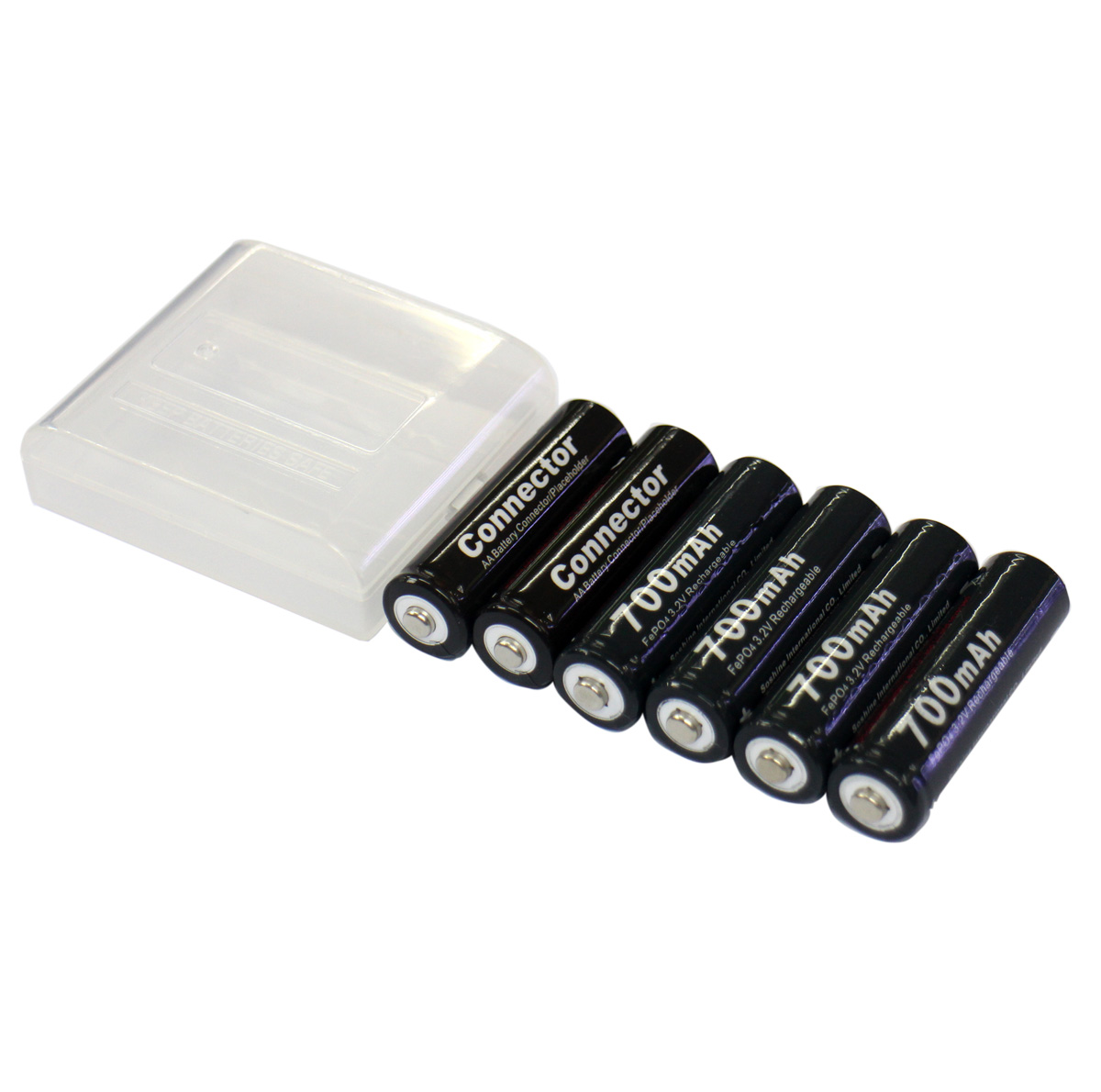

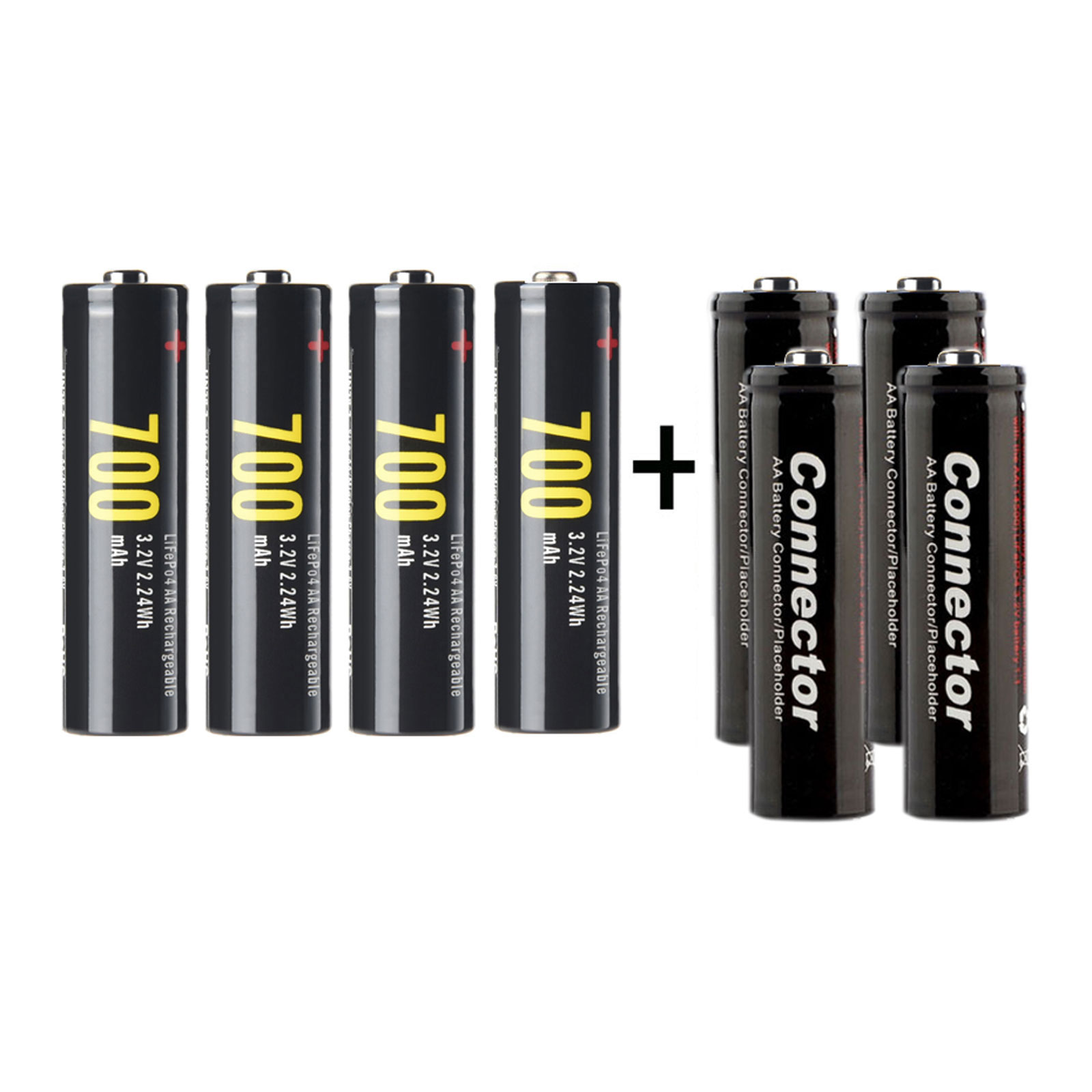

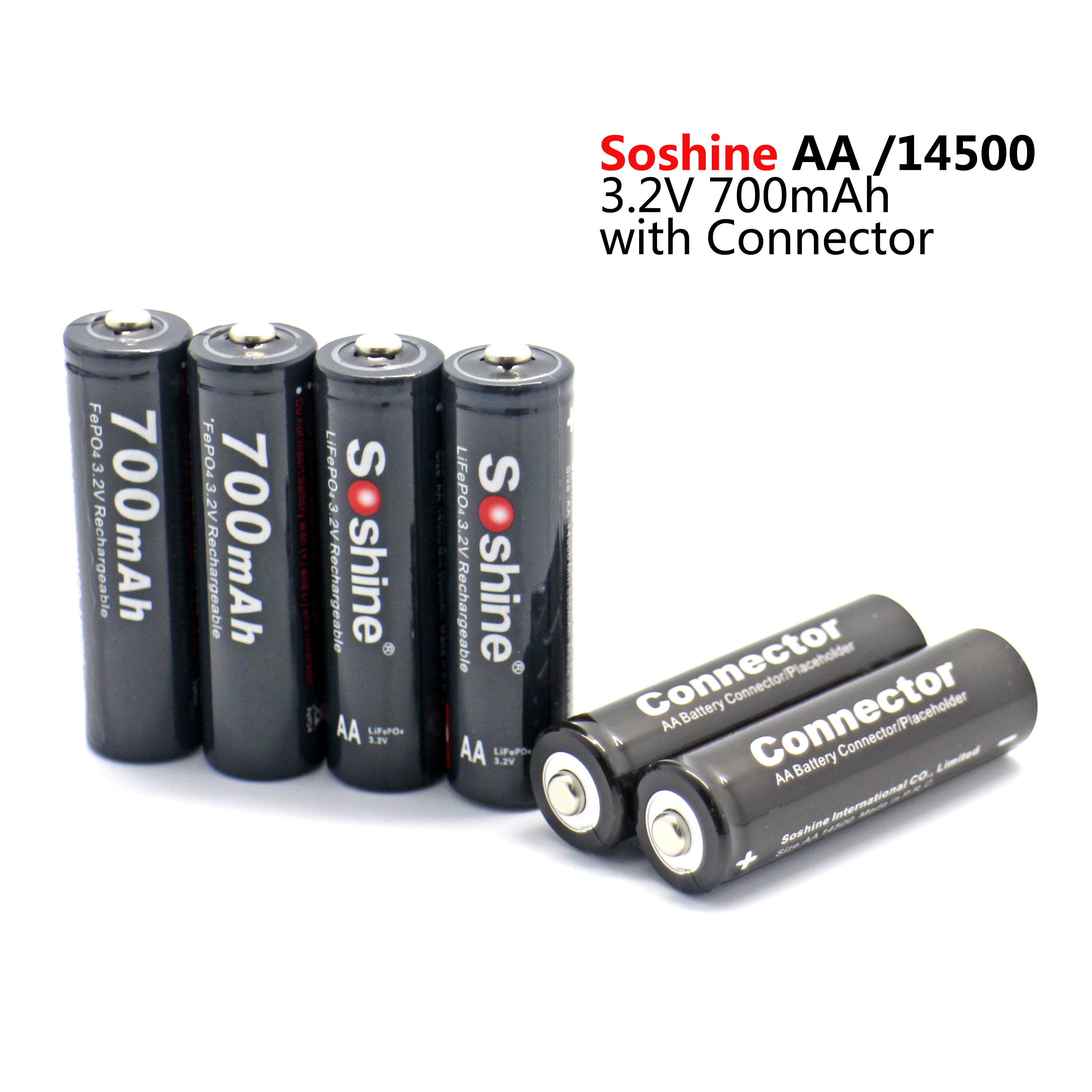

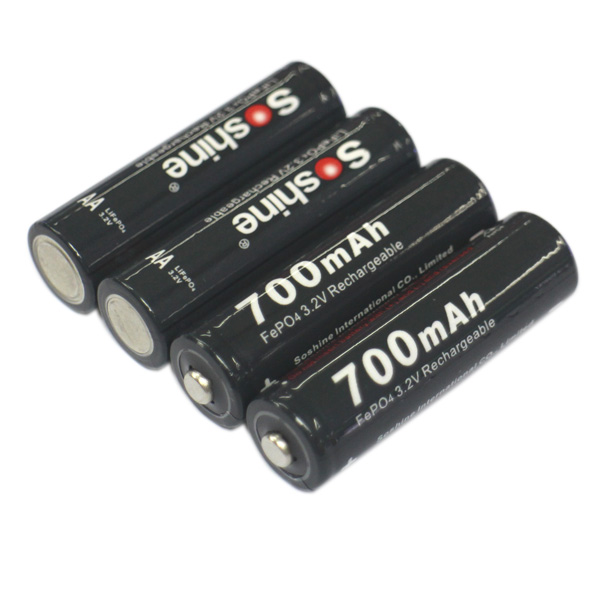

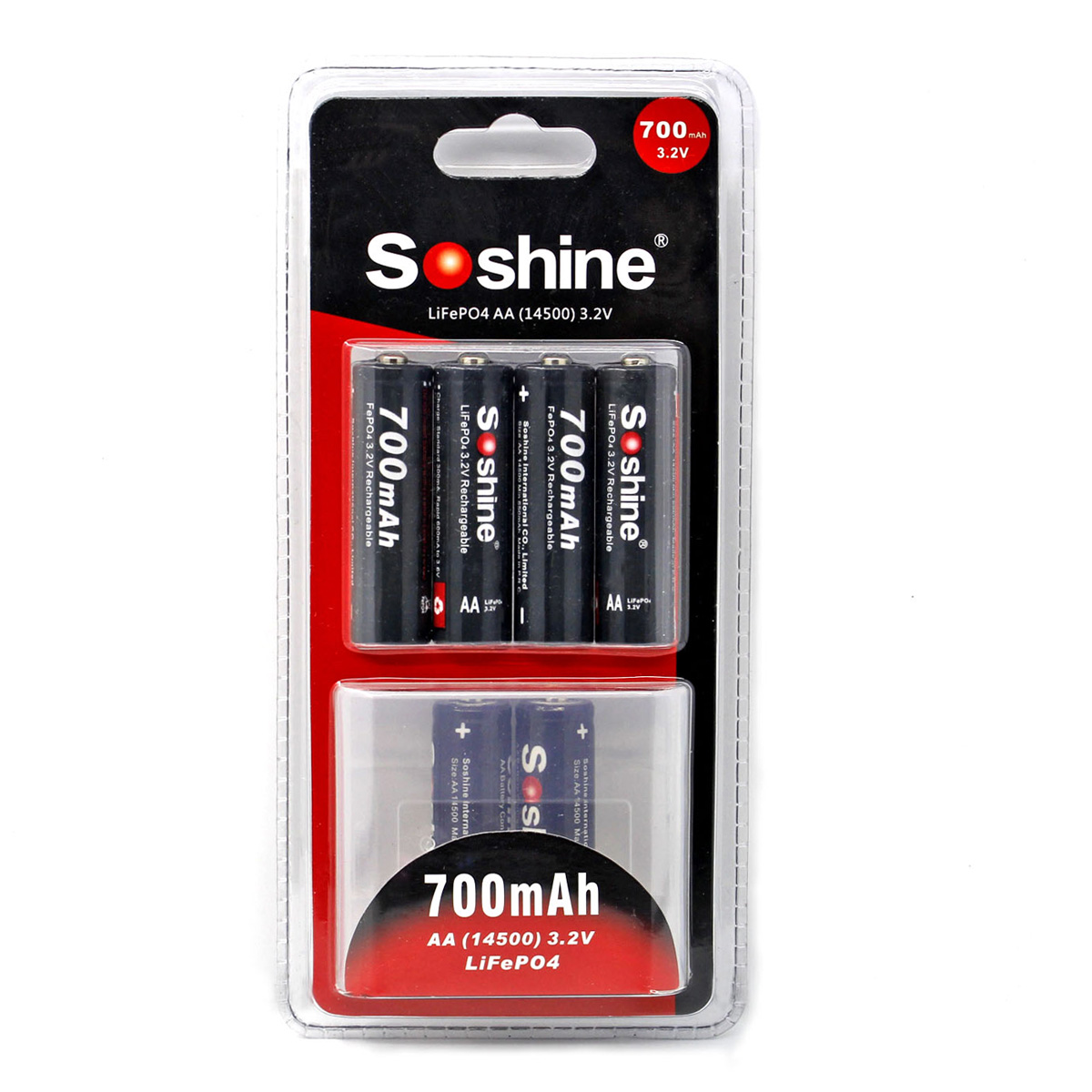

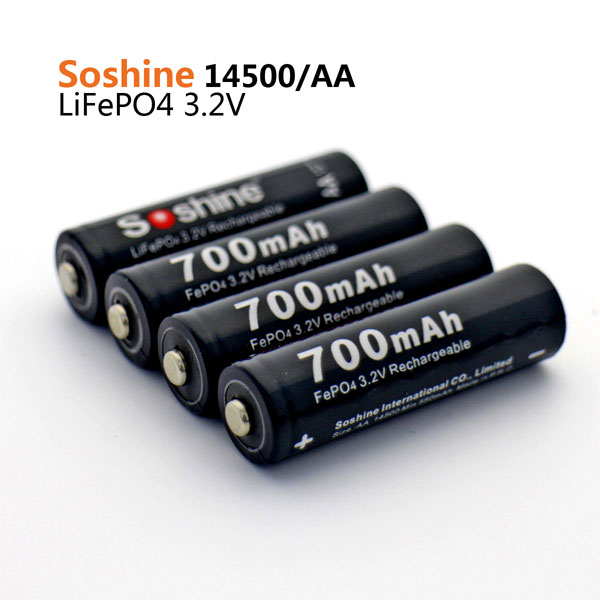

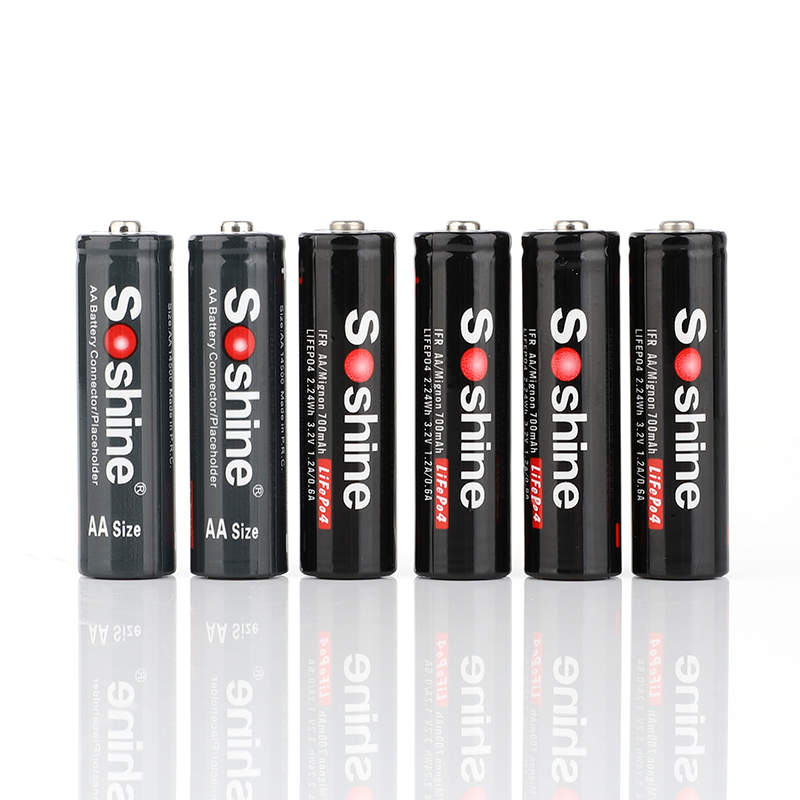

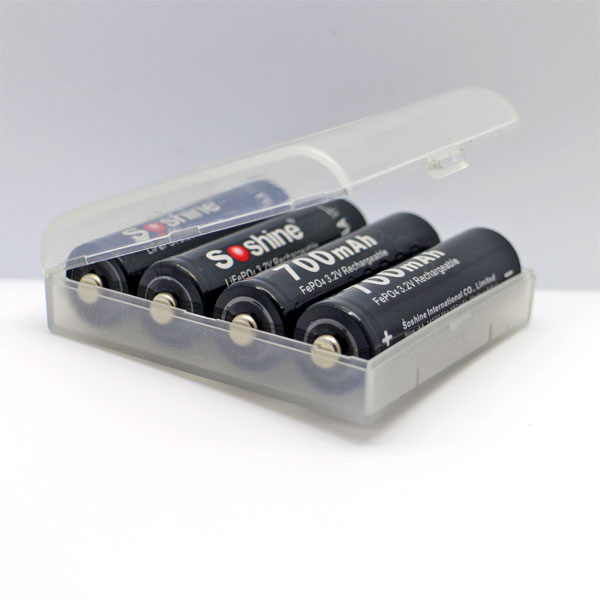

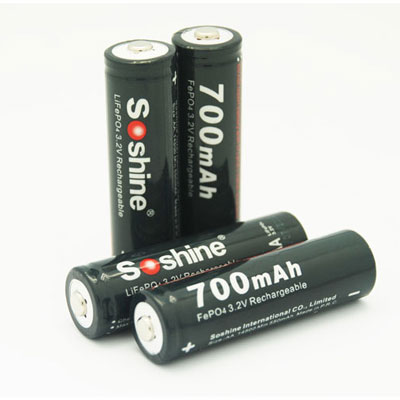

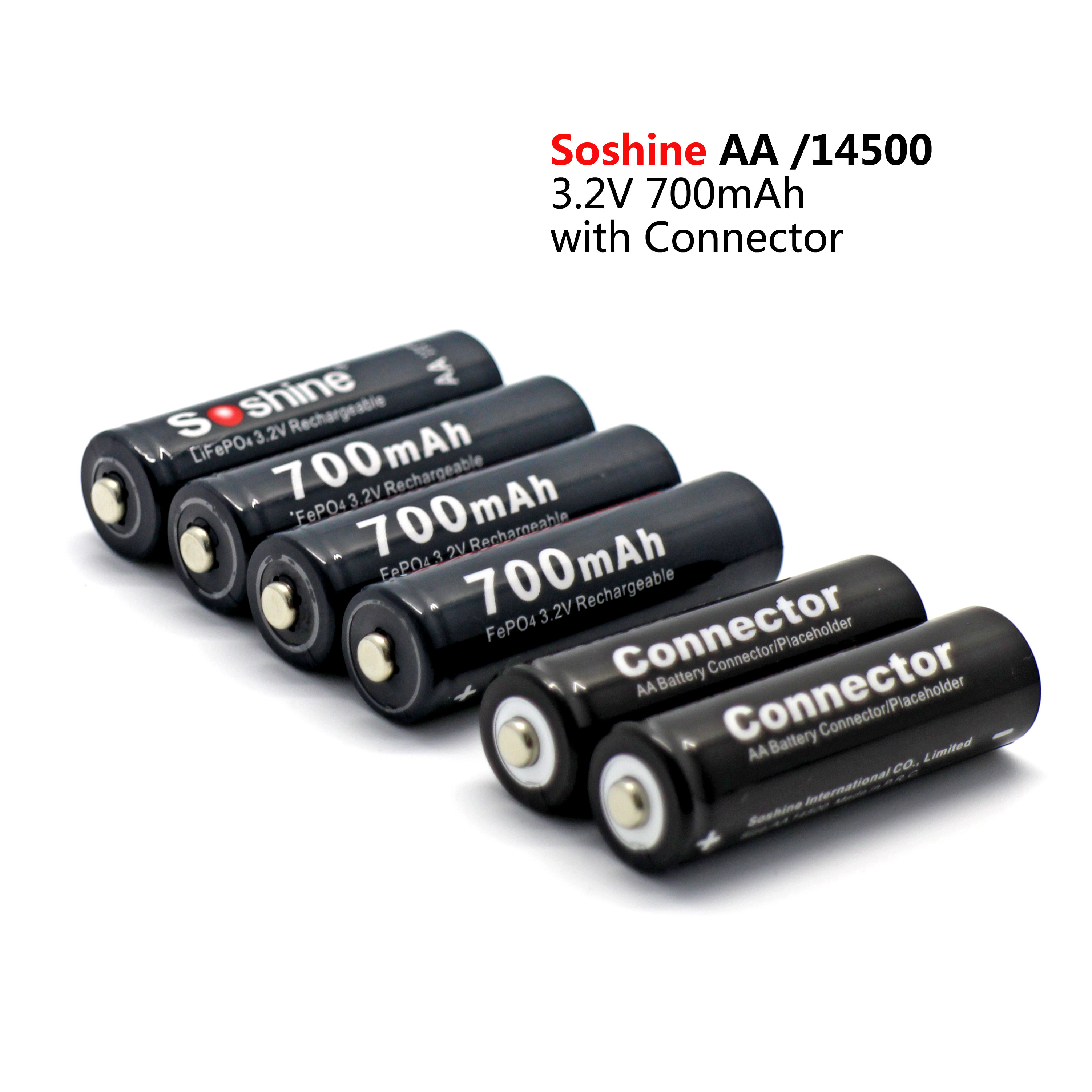

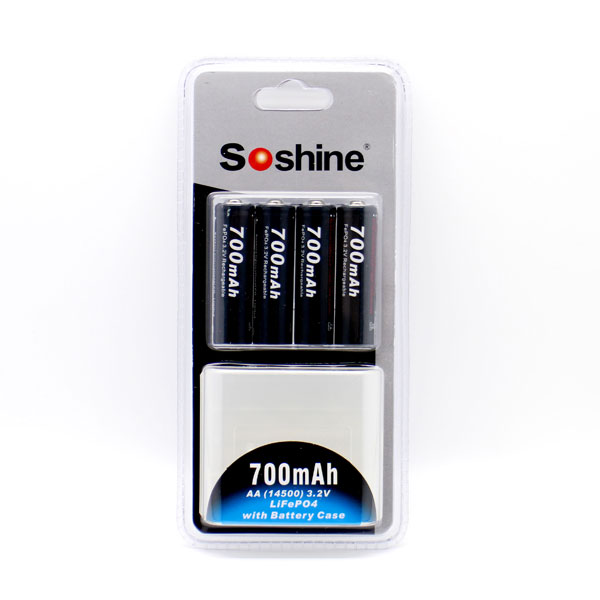

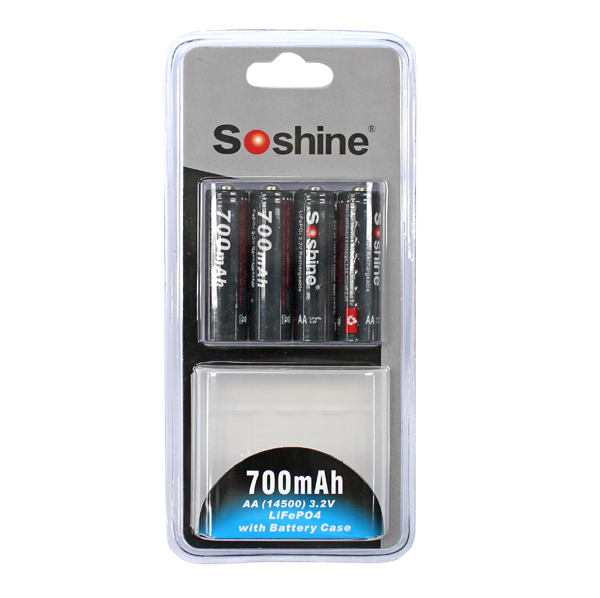

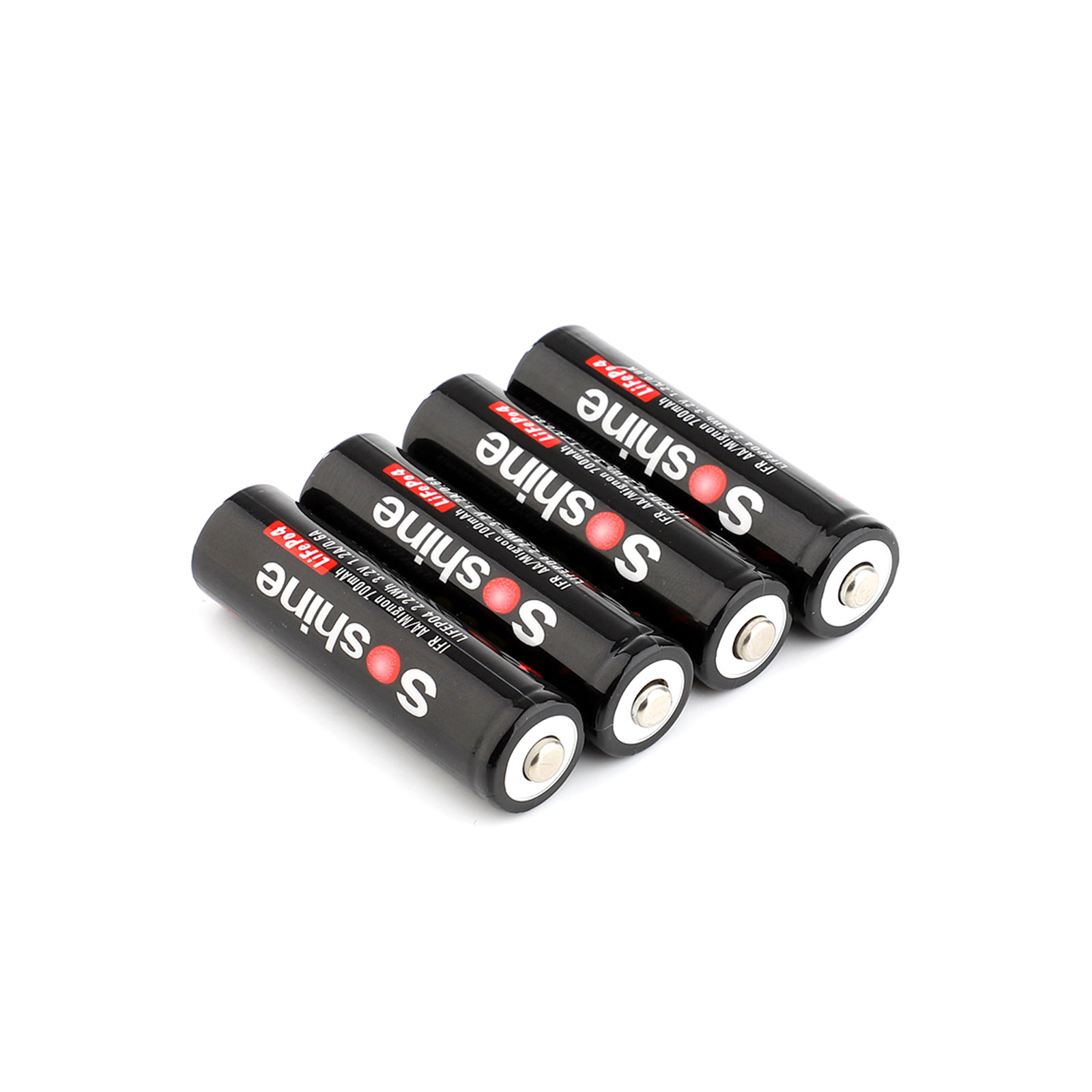

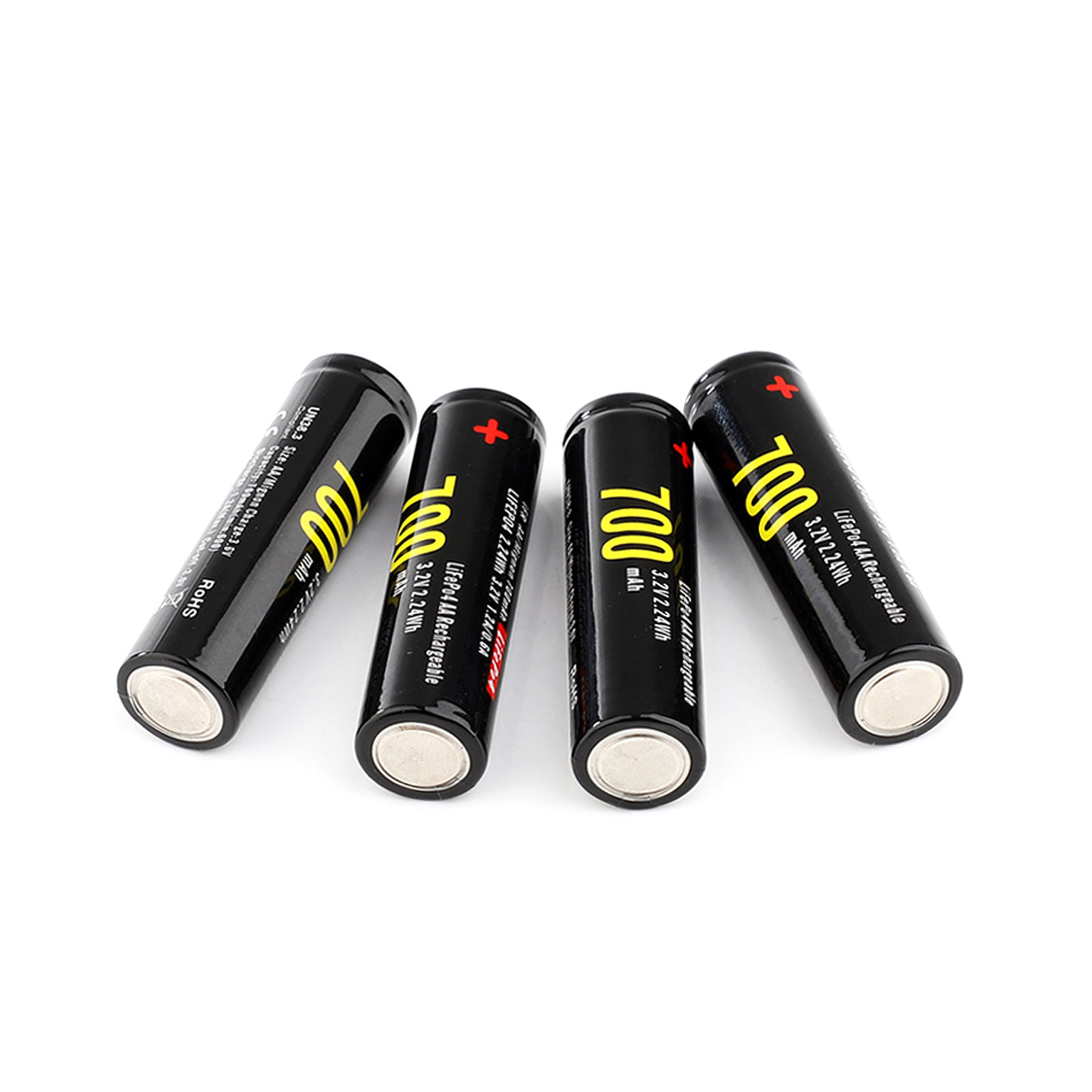

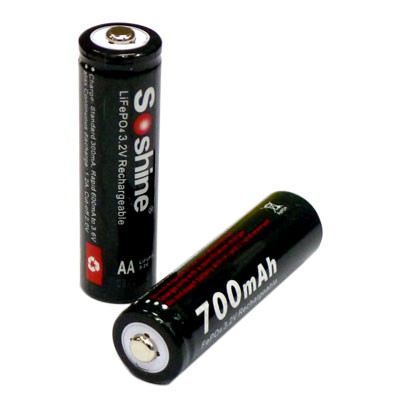

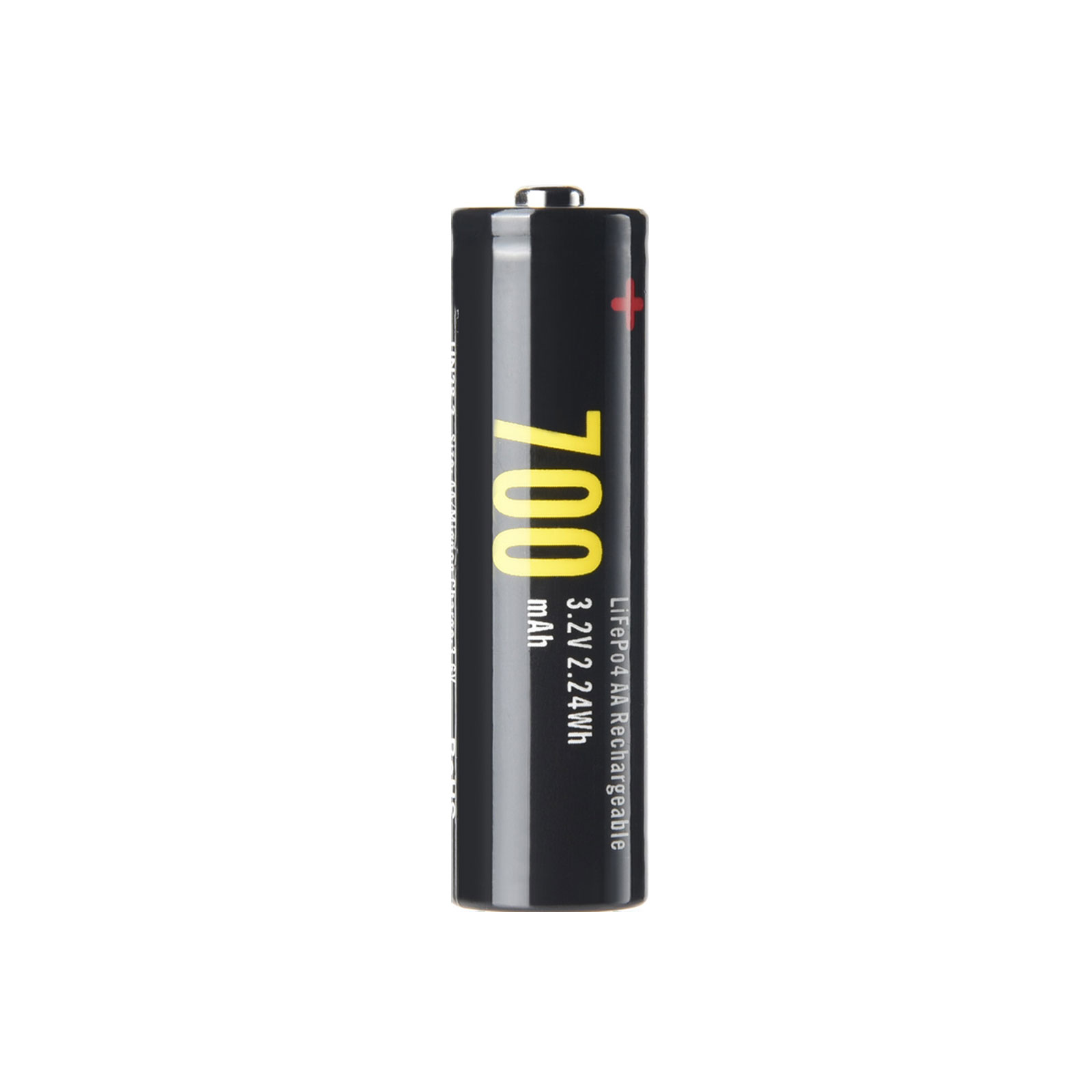

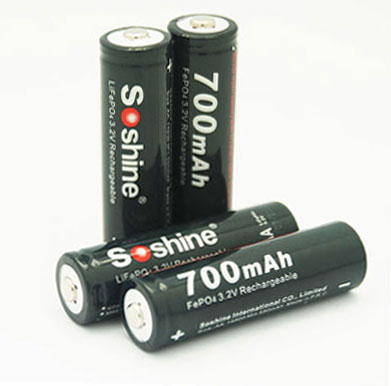

Soshine AA 14500 LiFePO4 Battery: 3.2V 700mAh

Product Overview

Soshine Battery 700mAh 3.2V

Model: 14500-3.2-700

Напишите нам: soshineby@gmail.com
Позвоните нам: +375(29)8765720

Description

LiFePO4 AA /14500 battery :700mAh 3.2V

Bar Code: 6951151512420

Model: 14500-3.2-700

Type:LiFePO4

Nominal voltage: 3.2 V
Nominal capacity: 700 mAh
Core cell weight: 27 grams
Size: 14.00*50.00mm

Internal resistance: 41-44 mΩ

Maximum Continuous charge: 1C
Maximum Continuous Discharge: 1.5C

Typical fast charge current: 1C to 3.8V CCCV
Fast charge time: 30 minutes
Cycle life at 0.5C discharge, 100% DOD: over 1,000 cycles

Note:

(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.

(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest that batteries should be charged and discharged once every 6 months.

Certification / Test Report download:

UN38.3: http://www.soshine.com.cn/Down137.aspx

IEC62133: http://www.soshine.com.cn/Down138.aspx

MSDS: http://www.soshine.com.cn/Down139.aspx
