High Drain Battery
 | Product Overview 3000mAh / 35A Flat Top / High Drain High Discharge /Li-ion IMR battery Model: 18650-DBHG2 Напишите нам: soshineby@gmail.com Позвоните нам: +375(29)8765720 |
Description |

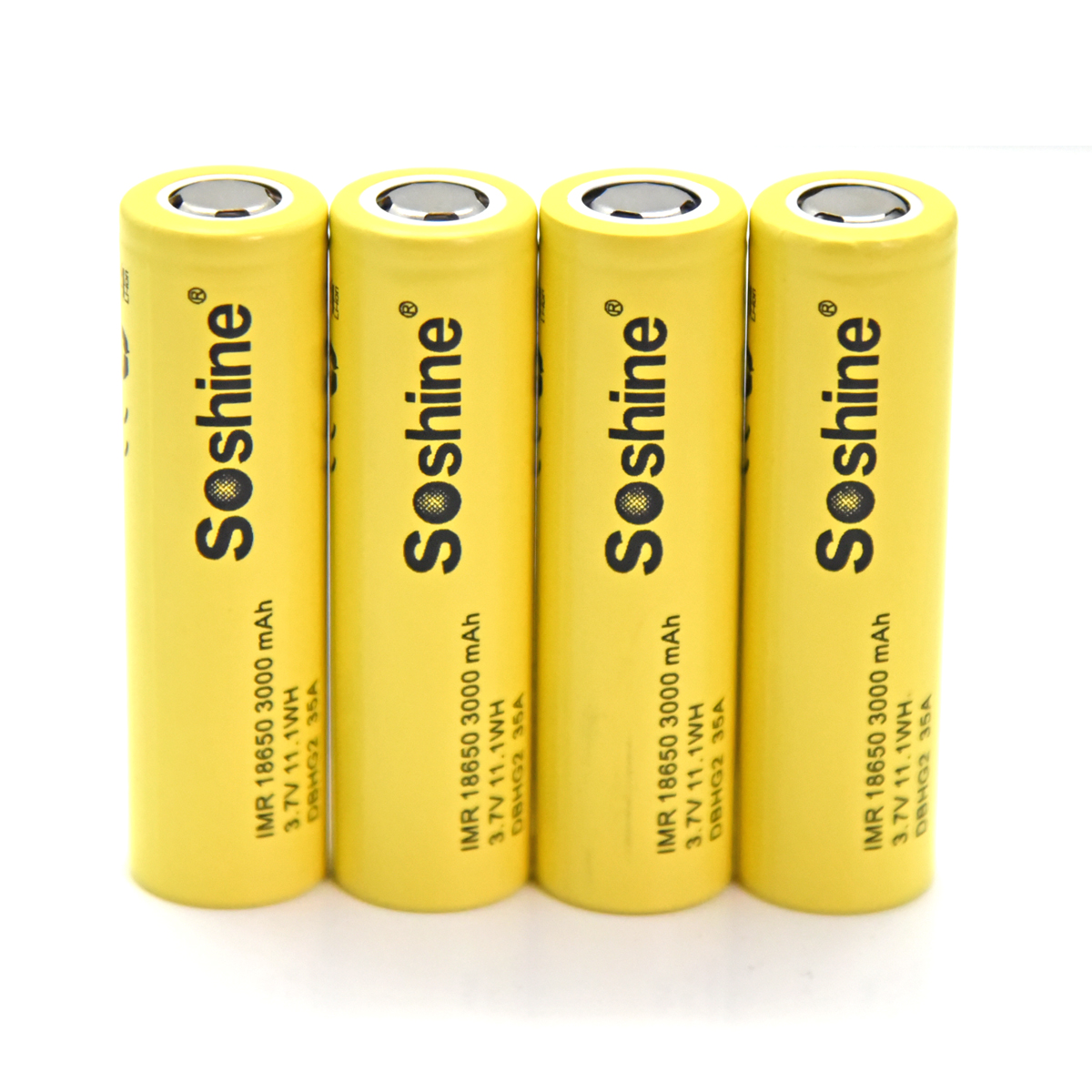

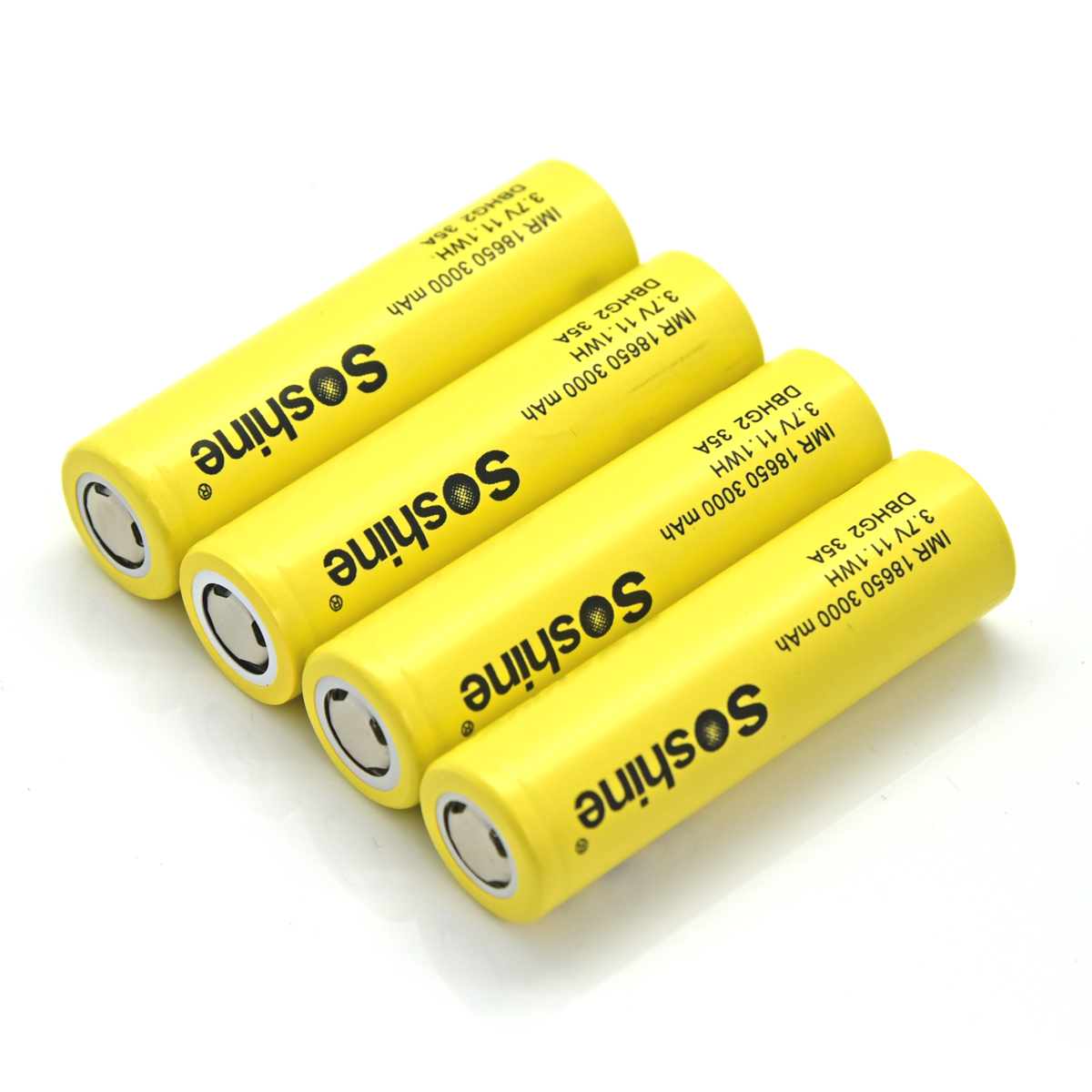

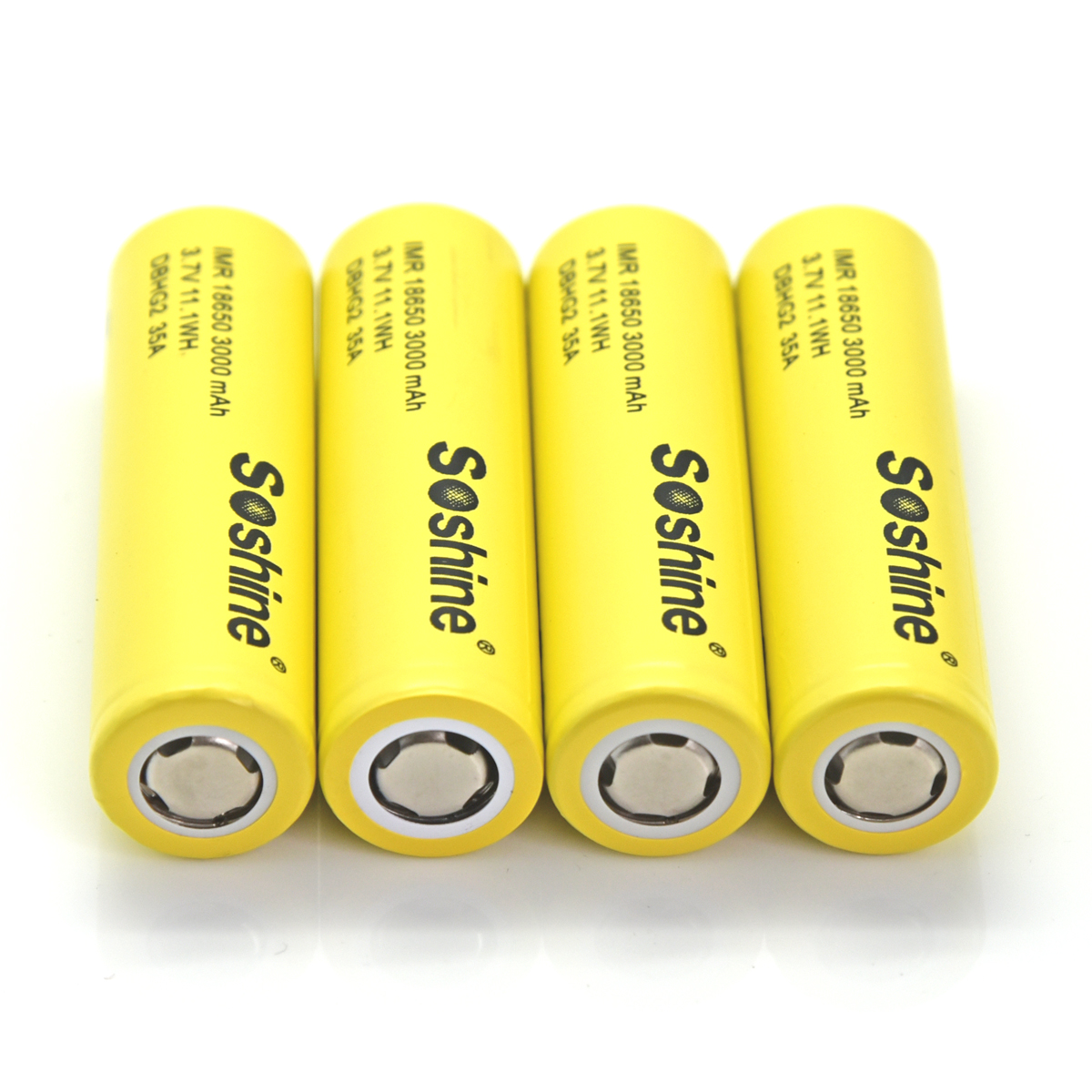

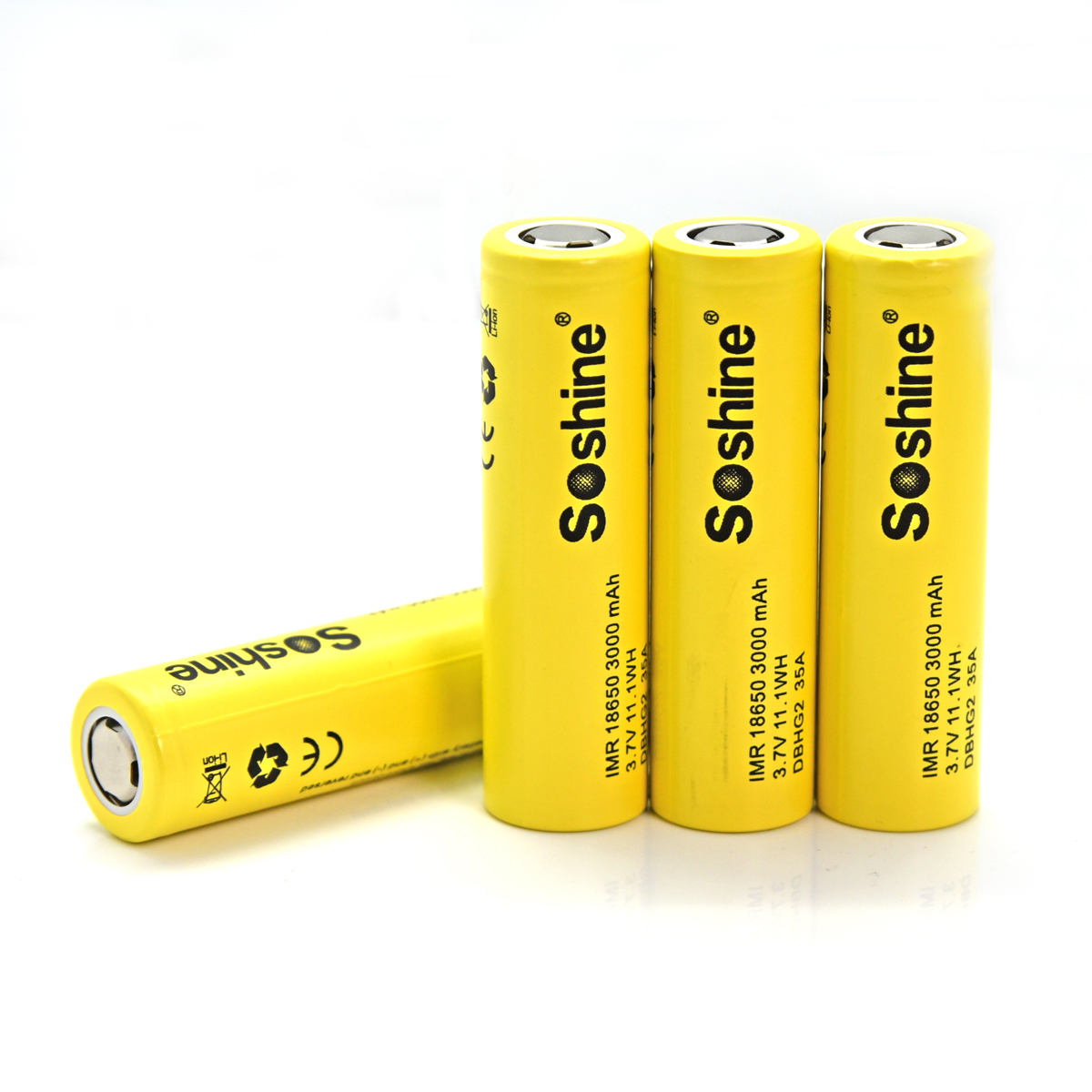

18650 Soshine DBHG2 35A 3000mAh Flat Top High Drain Battery Bar Code:6951151512024 Model: 18650-DBHG2  |
Product Specification:
Model:18650-DBHG2
Nominal Capacity: 3000mAh
Nominal Voltage: 3.6V
Standard Charge
Constant current: 1500mA
Constant voltage: 4.2V
End condition(Cut off): 50mA
Fast Charge
Constant current: 4000mA
Constant voltage: 4.2V
End condition(Cut off): 100mA
Max. Charge Voltage: 4.2V
Max. Charge Current: 4000mA
Standard Discharge
Constant current: 500mA
End voltage(Cut off): 2.5V
Fast Discharge
Constant current: 10A,20A
End voltage(Cut off): 2.5V
Max.Continuous Discharge Current: 20A
Max.Plus Discharge Current: 35A
Initial AC Impedance: ≤20 mΩ, without PTC
Weight: 47.0g
Dimension: Max.(D)18.5*(H)65.2mm
Note:
(1) The batteries should be stored at room temperature,charged to about 30% to 50% of capacity.
(2) During long term storage,in order to ensure the battery to maintain the capacity level,we suggest Li-ion batteries should be charged and discharged once every 6 months.
